The Things Network LoRaWAN™

This tutorial provides a step-by-step guide to integrate The Things Network (TTN) with the TagoIO platform. By following these instructions, you will enable uplink and downlink operations, allowing data exchange between your LoRaWAN devices and the TagoIO application.

If you're trying to integrate TTI or TTN v3, use our TTI integration instructions.

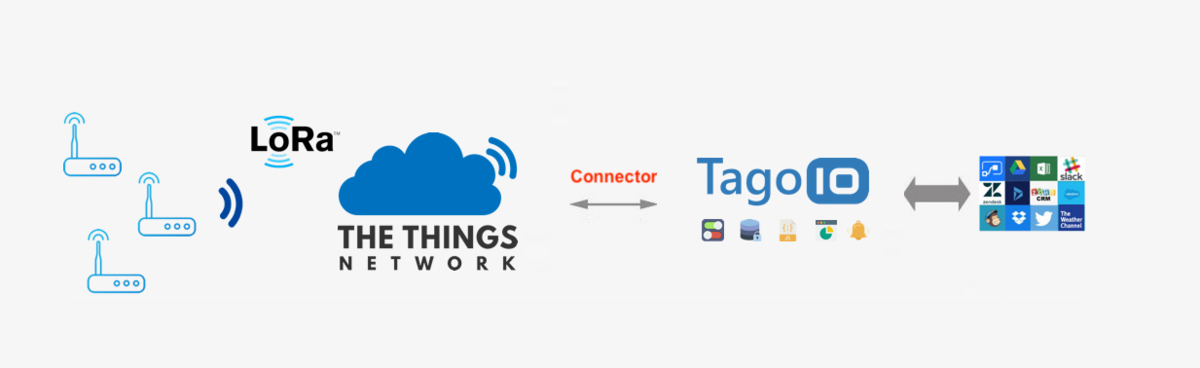

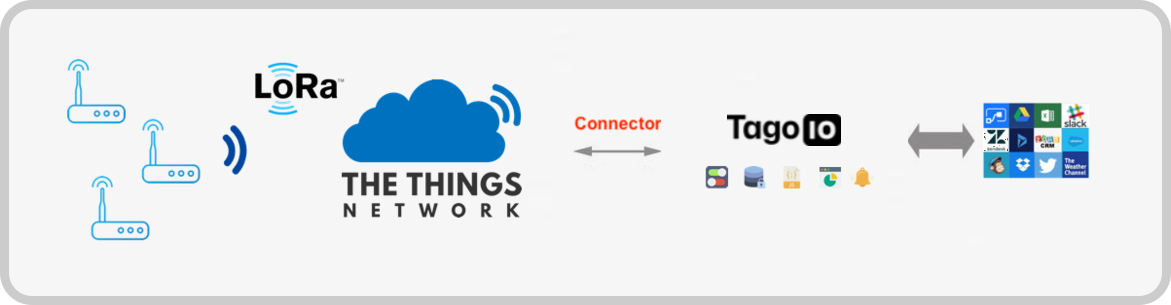

Integration diagram showing LoRaWAN devices, The Things Network, a connector, and TagoIO

Prerequisites​

Before you begin, ensure you have the following:

Step 1: Create Authorization in TagoIO​

Create a New Authorization​

  1. Go to Devices in the TagoIO dashboard.

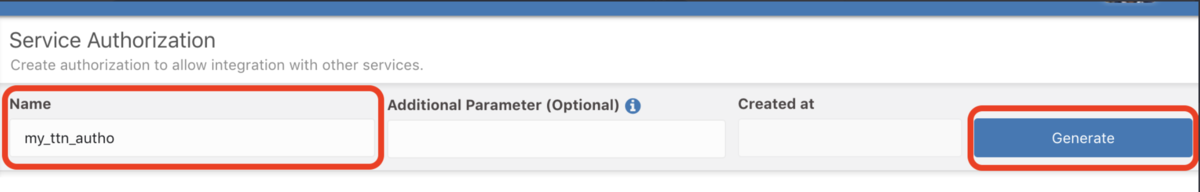

  2. Click the Create Authorization button.
  3. Provide a meaningful name for the authorization (e.g., TTN-Integration).
  4. Click Save.

Image 2

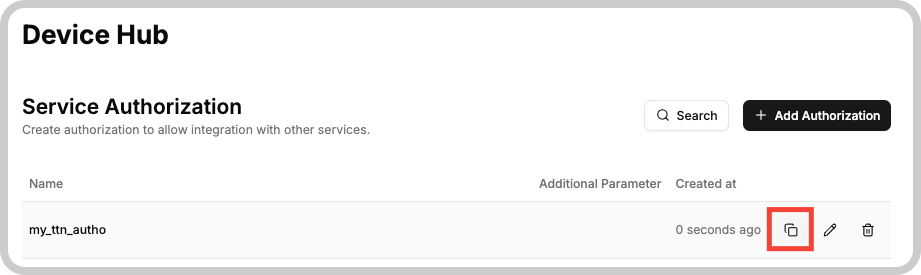

Copy the Authorization Token​

After creation, copy the authorization token. You will need this in later steps.

Step 2: Configure TTN Integration​

  1. Navigate to your TTN console and open your application.

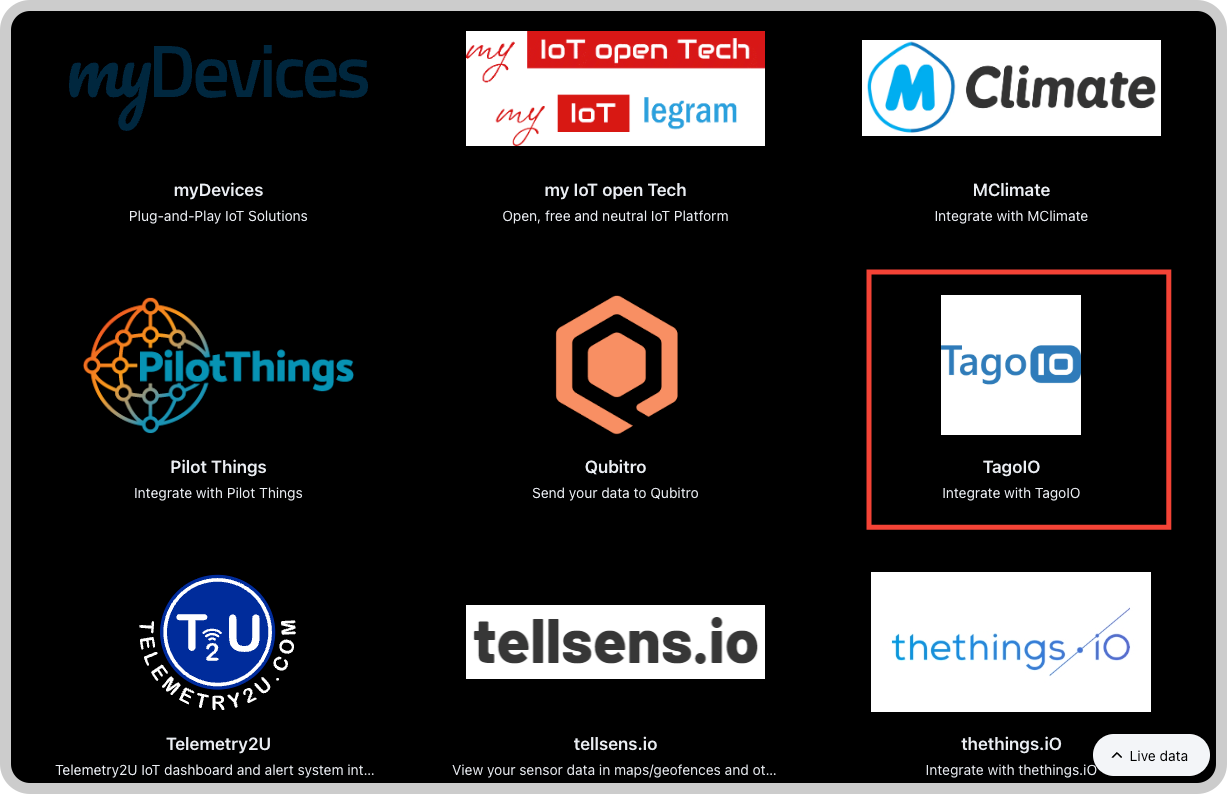

  2. Go to Integrations > Webhook > + Add Webhook.
  3. Select Custom Webhook from the list.

Image 3

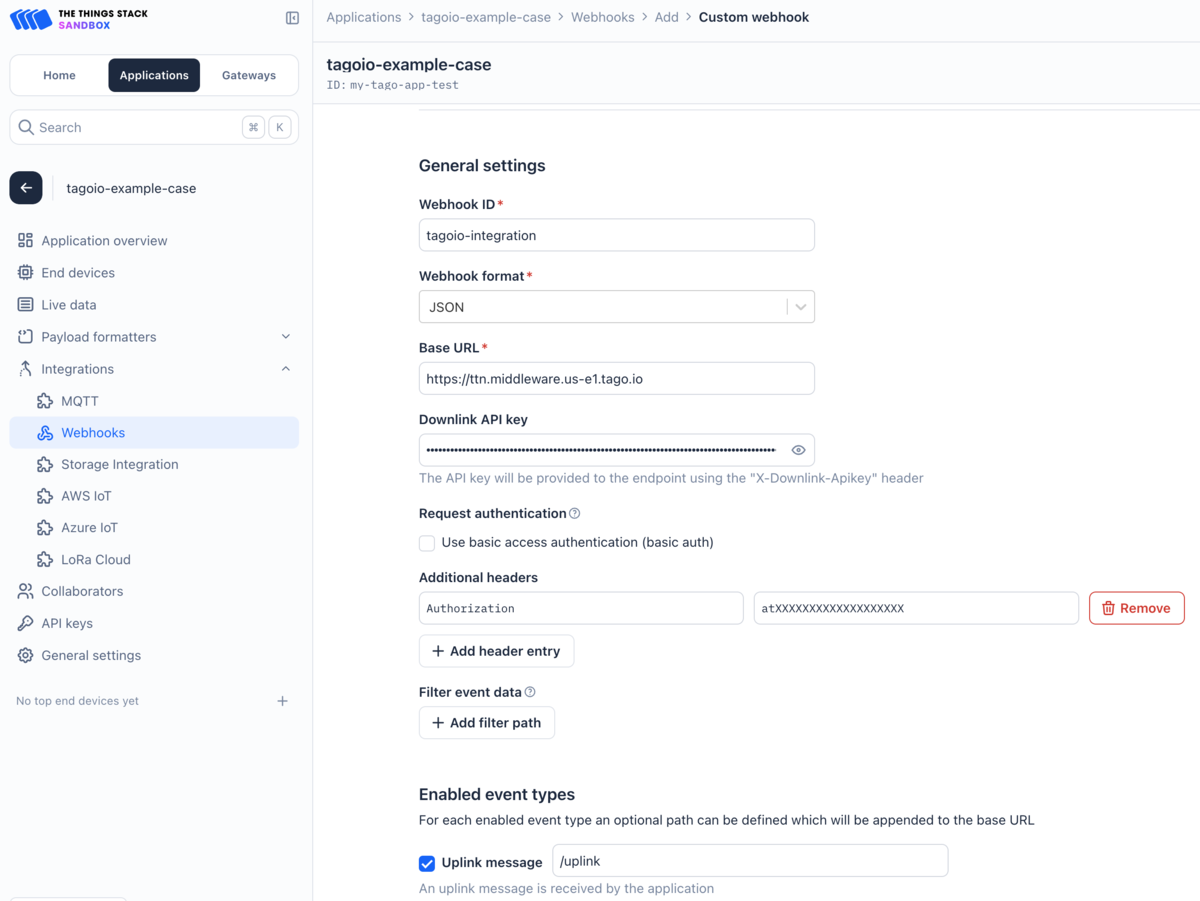

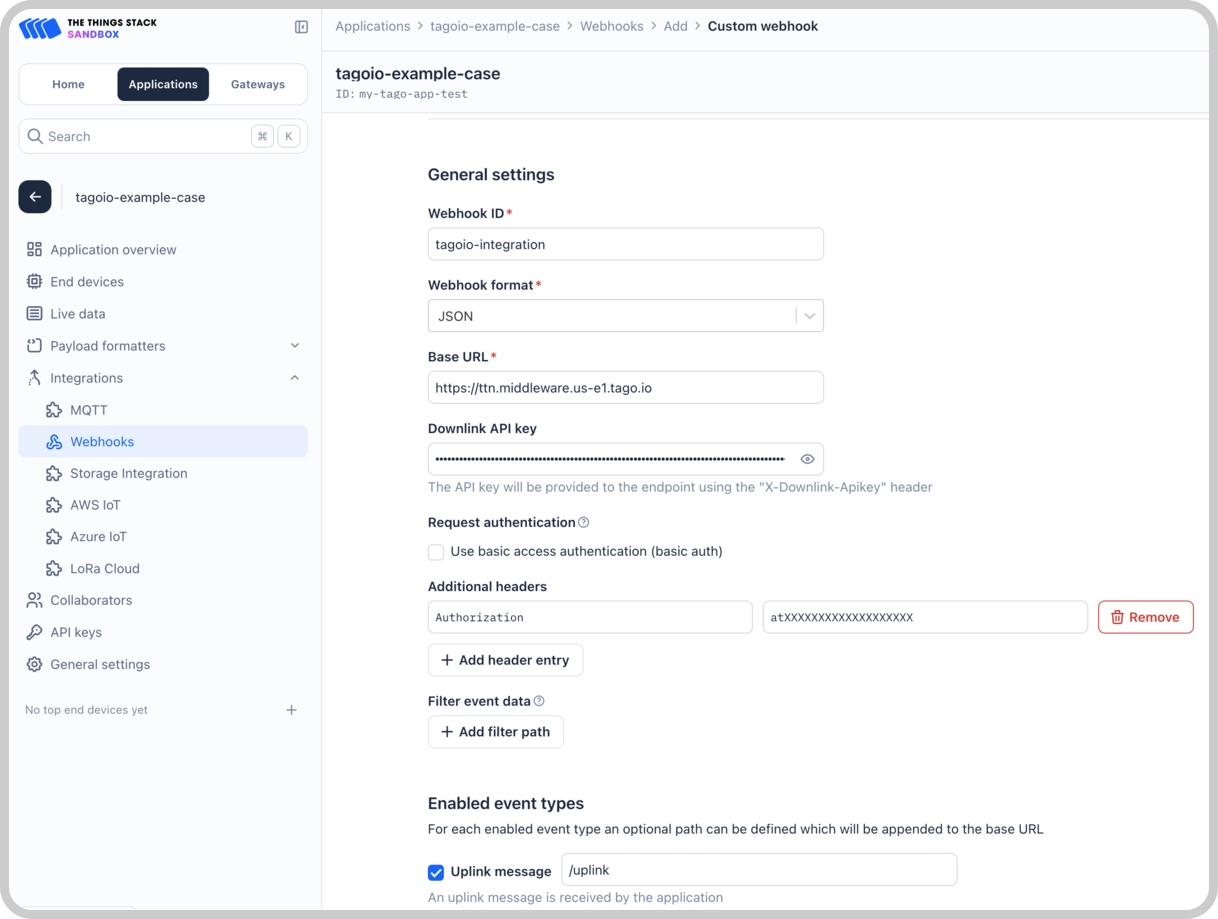

Webhook Configuration​

FieldDescriptionWebhook IDEnter a unique identifier (e.g., tagoio-integration).Webhook FormatJSONBase URLUse the endpoint format https://ttn.middleware.REGION.tago.io. Replace REGION with your deployment region (e.g., us-e1, eu-w1). For a list of available regions, visit TagoIO Network Integration.Additional HeadersAdd a header key Authorization and set its value to the authorization token you copied in Step 1.Enabled event typesEnable the event types you expect to receive from your device. Set the path of all enabled event types to /uplink.

Image 4

Step 3: Add Your Device to TagoIO​

Ensure Device EUI Consistency​

Select the Appropriate Network and Device Type​

  1. Choose the LoRaWAN TTN network during the device setup process.
  2. Select the correct device type from the available options. If your device is not listed, you can add support through connectors.

Add Device Support via Connectors (If Necessary)​

For detailed instructions on adding devices, visit the Adding Devices page.

Step 4: Finalize Setup​

  1. Power On Your Devices
    Turn on your LoRaWAN device and gateway to initiate data transmission.

  2. Verify Data Reception

With data successfully flowing into TagoIO, you can start creating Dashboards, Analyses, and Actions to visualize and manage your device data effectively.
