Gauge Overview

Gauge contains a collection of metric widgets. You can choose among several types of gauges that present the last value of a variable in different formats.

Dial​

Dials are one of the simplest and most useful widgets. They make it easy to visualize values relative to a defined range (maximum and minimum limits).

Dial widget examples

Learn more about the Dial Gauge.

Angular​

Angular allows you to show your variable in an angular gauge meter.

Angular gauge example showing a variable in an angular gauge meter

Learn more about the Angular Gauge.

Solid​

Solid gauges display your variable in a solid gauge meter.

Image 3

Learn more about the Solid Gauge.

Clock​

Clock gauges allow you to visualize the time in a certain timezone. You can see the selected timezone, weekday, hour, minutes and seconds.

Clock widget example showing timezone, time, weekday, and a dotted-second ring

Learn more about the Clock Widget.

VU Meter​

VU Meter gauges show the variable in a velocimeter gauge.

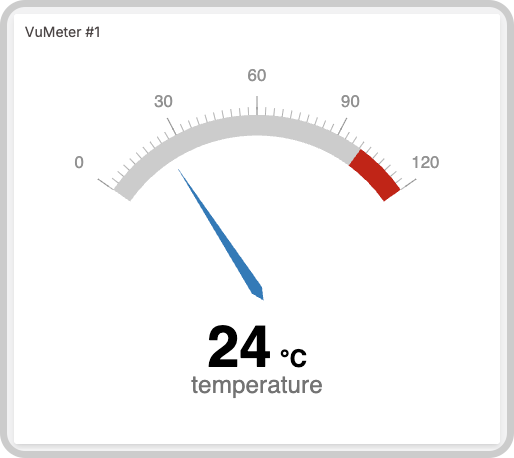

Three VU meters example

Learn more about the VU Meter Gauge.
